Ss Brewtech SVBS – 45L Single Vessel Brewing System

This product is shipped directly from our partner Brouwland.

The Ss Brewtech™ SVBS (Single Vessel Brewing System) is a premium all-in-one brewhouse engineered for brewers who demand pro-grade performance at home. Built on decades of Ss Brewtech innovation, the SVBS blends advanced engineering, ultra-precise construction, and brewer-centric design into one exceptionally powerful system.

From its photo-etched mash basket to the Halo heating element, and from the integrated Pure Flow Valves to its remote touchscreen controller, every detail is crafted to deliver a smooth, efficient, and highly repeatable brew day.

This is the closest you can get to an Ss Brewtech Pro Brewhouse — in a single-vessel format.

Key Features

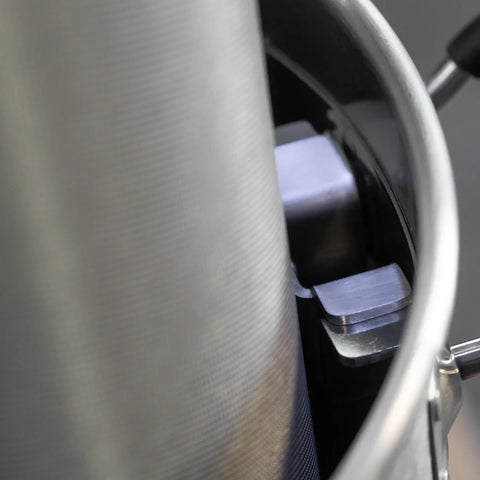

Ultra-Precision Photo-Etched Mash Basket

• Industry-leading fine mesh: fluid flows uniformly through nearly the entire surface
• Virtually eliminates stuck sparges and slow run-offs
• Boosts mash efficiency with even extraction

Halo Heating Element

• Incoloy 800 sheath for durability and corrosion resistance
• Quick heating with even distribution
• Easy to clean, low scorching risk
• Fully modulated control via the advanced SSVR system for perfect mash temp control and stable boil power

Integrated Pump & Pure Flow Valve Manifold

Inspired by Ss Brewtech’s commercial valve trees, giving unmatched control in an all-in-one system:

Recirculation Valve

• Center-mounted stainless recirculation tube
• Laminar wort flow over the grain bed
• Automatic basket seal engages when lowered & disconnects when lifted
• Exceptional mash efficiency

Whirlpool Valve

• Strong whirlpool via angled floor port
• Sediment collects in the center for clean wort separation
• 360° photo-etched pump filter ring prevents clogging

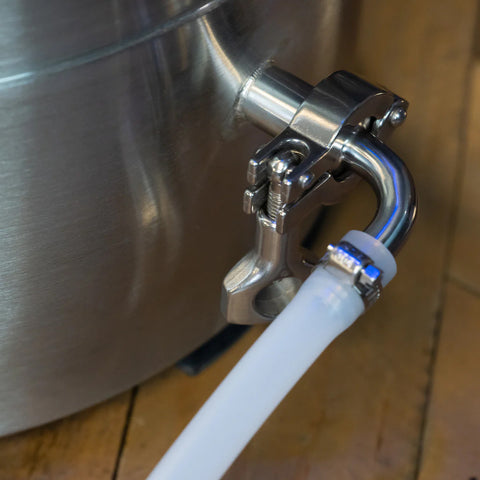

Knockout Valve

• 3/4" Tri-Clamp side port
• Designed to pair perfectly with the optional SS Brewtech Immersion Chiller
• Delivers clean, cool, yeast-ready wort directly to the fermenter
• Sanitary design requires no disassembly — simply run cleaner through each manifold branch

Precision Touch Control System

• Remote screen (stay safe from steam & splashes)
• Full control of heating, pump, recirculation & boil power
• Graph your entire brew session + export CSV data
• Firmware upgradeable — new features unlocked over time

Mash & Boil Modes

Mash Mode (PID)

• PID-driven temp control for ultra-stable mash temps
• Automated heating ramp rate depending on strike water difference
• Perfect for single-infusion or multi-step mashes
• Accurate, repeatable, and consistent

Boil Mode (Power %)

• Manual power modulation to dial in the ideal rolling boil
• Adjust output based on room temp, kettle volume, and conditions

Specifications

• Capacity: 45 L
• Max grain weight: 9 kg
• Knockout port: 3/4" Tri-Clamp
• Voltage: 220–240 V
• Power: 3200 W
• Height: 75 cm
• Diameter: 37 cm

Power Settings

• EU High Power: 16A circuits
• EU Low Power: 13A circuits
• UK power mode
