MaltMuncher Grain Mill 3 Roller

The Malt Muncher 3 Roller Grain Mill is designed for brewers who want maximum control over their grain crush and need the capacity to handle larger grain bills efficiently. With larger rollers and an expanded hopper, this mill is ideal for brewers processing 7 kg or more of grain per batch.

The three-roller design allows for a more refined double-crush process. Grain first passes through the primary rollers and then through the adjustable third roller, producing a consistent crush while helping to keep the husk intact for an optimal lautering and sparging filter bed.

With an approximate 5.5 kg hopper capacity, the Malt Muncher reduces the need for frequent refilling, making brew day faster and more convenient.

The mill includes a manual crank handle but can also be driven by a drill or motor. When using a drill, it is recommended to operate at around 200 RPM to prevent overheating or damaging the grain.

Grain mills
Essential brewing equipment used to crush malted grains before mashing, improving extraction efficiency and mash performance.

Features

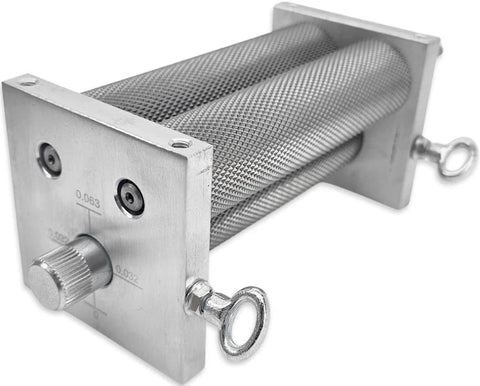

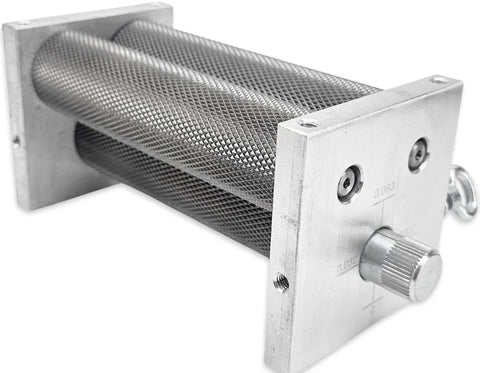

• Three-roller design for improved grain crushing
• Adjustable third roller for precise crush control
• Large grain hopper (approx. 5.5 kg capacity)
• Durable reinforced chassis with mounting holes
• 12 TPI knurled rollers for efficient grain feeding
• Helps preserve grain husks for better filtration during sparging

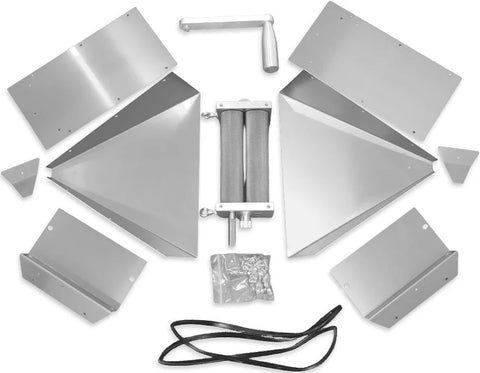

Included

• Grain hopper
• Manual crank handle
• 12 mm crank shaft
• Roller adjustment knobs
• Reinforced chassis with pre-aligned mounting holes

Usage

Brewing: Crushing malted barley before mashing
Suitable grains: Malted barley, wheat, and rye
Batch size: Ideal for brewers milling 7 kg or larger grain bills

Quick facts

Roller type: 3-roller grain mill
Hopper capacity: Approx. 5.5 kg
Crank shaft: 12 mm
Recommended drill speed: ~200 RPM
Compatible grains: Malted barley, wheat, rye

Note: Not designed for milling unmalted grains outside these specifications.
