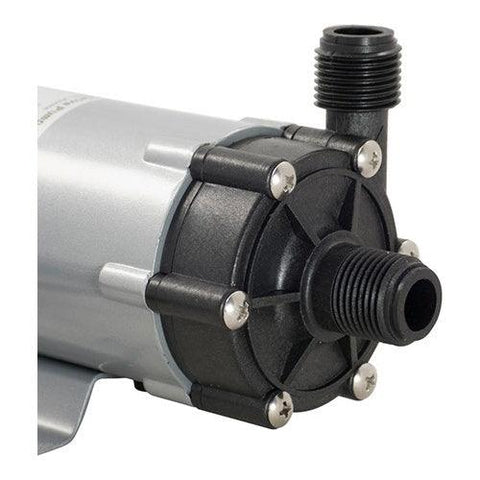

High Temperature Magnetic Drive Pump

This high temperature magnetic drive pump is designed for brewing and other high-heat liquid handling applications. Capable of operating at temperatures up to 120 °C, it can be run continuously without the need for cooling, making it ideal for recirculating hot wort or other liquids in your brewing system.

The pump features a 1.1 A motor and a max flow rate of 19 L/min, with a maximum head of 3.4 m. Its magnetically coupled design ensures reliable operation under pressure without the need for a mechanical seal, reducing maintenance and leak risk.

This pump is not self-priming and must be positioned below the liquid source to allow proper priming. It is also not suitable for submersion.

For flow control during brewing, it is recommended to install a 1/2" ball valve on the outlet side.

Magnetic drive pumps
Centrifugal pumps designed for safe, high-temperature liquid circulation in brewing and other industrial applications.

Usage

Brewing: Wort recirculation, mash transfer, and high-temperature liquid transfer
Industrial: Safe circulation of hot liquids under pressure
Flow control: Use with 1/2" ball valve for precise liquid management

Quick facts

Voltage: 220–240 V, 50–60 Hz
Max flow: 19 L/min
Max head: 3.4 m
Fittings: 1/2" BSP
Motor: 1.1 A
Temperature rating: Up to 120 °C
Design: Magnetic drive, pressure rated
Installation: Below liquid level for proper priming

Important note: Do not run the pump dry, as this can damage the unit.
