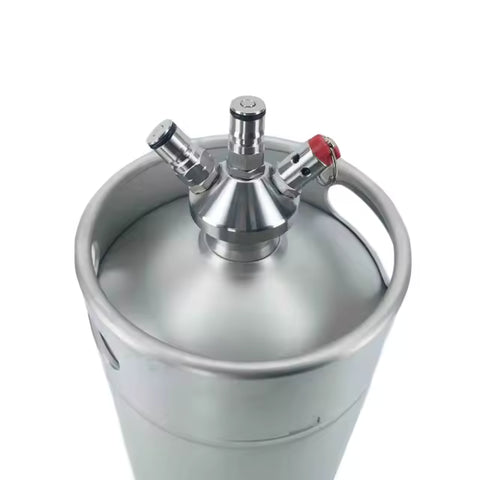

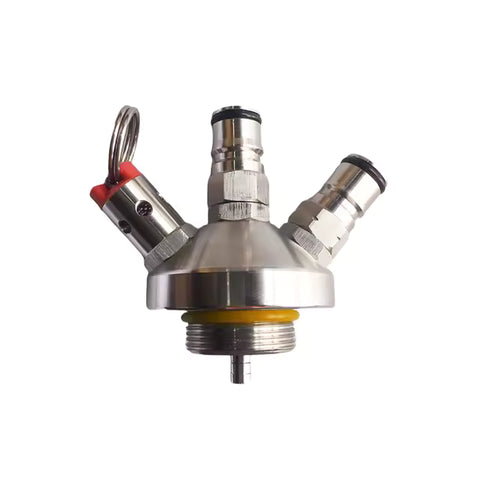

Mini Keg Ball Lock Tapping Head with Silicone Dip Tube

The Mini Keg Ball Lock Tapping Head with Silicone Dip Tube is designed specifically for KegLand Mini Kegs, allowing you to connect standard ball lock disconnects to your mini keg system.

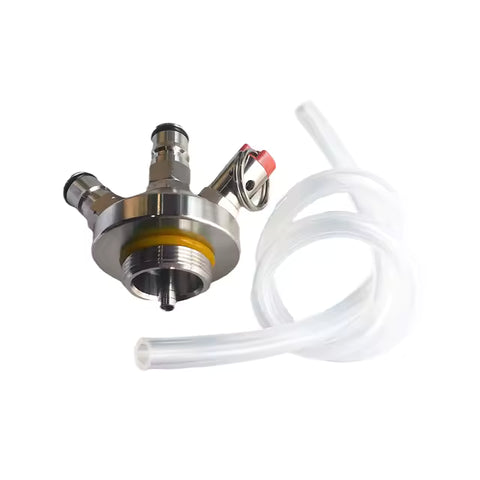

This tapping head features a 1" 16 TPI thread, which matches the threading used on KegLand mini kegs. The included 8 mm silicone dip tube reaches to the bottom of the keg, allowing smooth liquid dispensing when paired with a liquid ball lock disconnect.

Using ball lock connections makes the mini keg compatible with standard draft setups, including kegerators, portable serving systems, and CO₂ regulators.

Mini keg tapping heads
Adapters that allow mini kegs to be connected to standard draft system fittings such as ball lock disconnects.

Usage

Mini keg dispensing: Connect mini kegs to draft systems
Portable serving: Pair with CO₂ regulators and ball lock disconnects
Homebrew serving: Use with kegerators or portable draft setups

Quick facts

Compatibility: KegLand Mini Kegs
Thread size: 1" – 16 TPI
Dip tube: 8 mm silicone hose
Connection type: Ball lock compatible

Dimensions

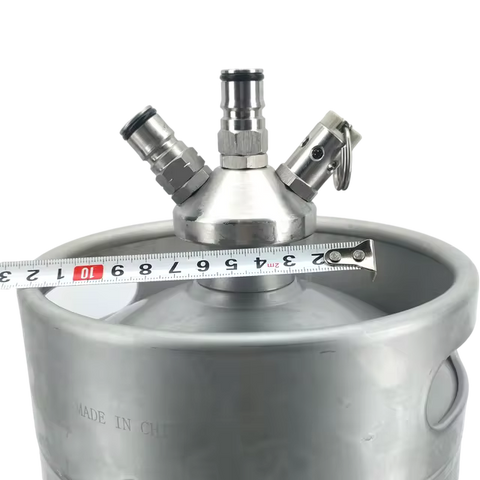

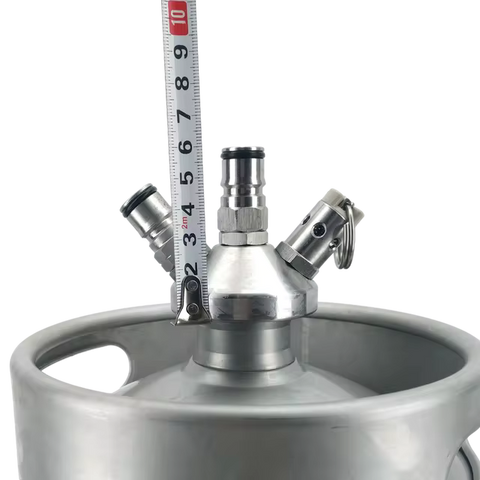

Dimensions are shown in the product images.

Additional clearance required:
• +50 mm when using a standard black liquid disconnect with Duotight
• +70 mm when using a flow control disconnect

Mini keg not included
