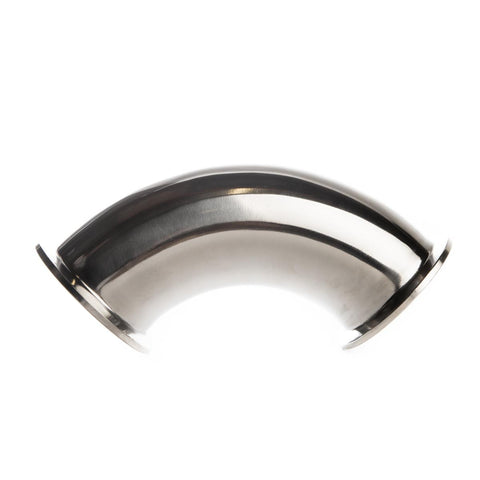

Brewtools TC Elbow 90° 2" - Stainless Tri-Clamp Elbow Fitting

The Brewtools TC Elbow 90° is a stainless steel 2" Tri-Clamp elbow that turns a flow path through ninety degrees — the small, unglamorous fitting that makes entire setups physically possible. With 2" TC flanges on both ends, a 47.5mm inner diameter, and a 76.2mm bending radius, it maintains a full, smooth 2" bore through the bend: no flow restriction, no turbulence-inducing sharp corner, and no crevices for cleaning to miss.

Its defining job in the Brewtools ecosystem is the MiniUni™ bottom-dump setup. The MiniUni™'s 2" TC bottom port points straight down — which means anything mounted directly to it points straight down too, into space that doesn't exist below the base. Mount this elbow on the port (with the Leg Kit providing the 14cm of clearance), and the connection turns sideways: the butterfly valve now sits horizontally beside the tank, with room for a jug, bucket, or transfer line underneath. Open the valve, and settled yeast and trub drop cleanly out of the cone, unitank-style — the complete bottom-dump chain built from three simple parts.

Beyond that headline role, a 2" TC elbow earns its place anywhere flow needs to turn a corner in a sanitary system: routing transfer lines around equipment, angling connections off fermenter and kettle ports, and running hoses parallel to a pump instead of jutting out into the walkway. It's the kind of fitting you buy for one job and end up reaching for constantly.

⸻

Key Features

• 90° bend with full 2" bore maintained — no flow restriction through the turn
• 2" Tri-Clamp flanges on both ends — fits the standard TC ecosystem
• Stainless steel construction — sanitary, durable, easy to clean
• The key fitting in the MiniUni™ bottom-dump setup (with Leg Kit and Butterfly Valve TC 2")
• Smooth internal bend — no crevices, cleans completely
• Official Brewtools TC piping — ID 47.5mm, OD 50.6mm, bending radius 76.2mm

⸻

Usage

Best suited for: MiniUni™ bottom-dump setups (redirecting the bottom port sideways), transfer line routing, sanitary plumbing around fermenters, kettles, and pumps

Compatible with: Standard 2" Tri-Clamp fittings, clamps, and gaskets; Brewtools Butterfly Valve TC 2"; Brewtools MiniUni™ bottom port (with Leg Kit for clearance)

Note: Tri-Clamps and gaskets are not included — you need one clamp and one gasket per connection. For the full MiniUni™ bottom-dump setup: Leg Kit + this elbow + Butterfly Valve TC 2" + two 2" clamps and gaskets.

⸻

Quick facts

Brand: Brewtools
Type: TC elbow, 90°
Connection: 2" Tri-Clamp, both ends
Part number: 7712265
Inner diameter: 47.5mm
Outer diameter: 50.6mm
Bending radius: 76.2mm
Material: Stainless steel
Use: Bottom-dump setups, flow routing, sanitary TC plumbing
