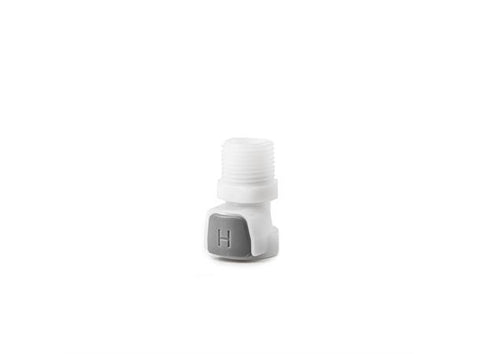

Brewtools Quick Connector - Female to 3/8 inch NPT

Brewtools leak-free quick connector with a female coupling body on one side and a 3/8" NPT thread on the other. Screw the NPT end into your glycol chiller, cooling jacket or threaded port, and the female body clicks onto the matching male connector — connect and disconnect the cooling loop in one second, without draining the line and without glycol on the floor.

The valve inside seals the moment you unclick, so a fermenter can be taken off the glycol loop mid-fermentation while the rest of the loop keeps running. That is the whole point of running quick connectors on a cooling setup: swap fermenters without ever opening the circuit.

Key features

• Leak-free: internal valve seals automatically on disconnect
• Female coupling body × 3/8" NPT male thread
• Connect/disconnect the glycol loop in one click — no draining
• Pairs with the Brewtools male quick connectors
• Fits Brewtools B-series cooling ports and any 3/8" NPT thread

Usage

• Wrap the NPT thread with PTFE tape and screw into the chiller or jacket port
• Click the matching male connector (on the hose side) in to connect
• Press the release to disconnect — both sides seal, no spill

Quick facts

• Brand: Brewtools (art. 7712772)
• Type: leak-free quick connector
• Connection: female coupling × 3/8" NPT thread
• Use: glycol cooling loops, fermenter jackets, chillers
