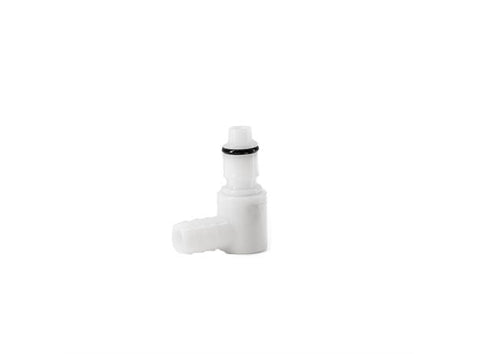

Brewtools Quick Connector - Male Elbow to 10mm Barb

Brewtools leak-free quick connector with a male coupling plug on one side and a 90° elbow to a 10 mm hose barb on the other. Push your glycol line over the barb, clamp it, and the male end clicks into any matching female connector on the chiller or jacket — with the elbow turning the hose immediately downward, so the line leaves the port without a tight bend.

That 90° turn matters on insulated glycol tube, which is stiff by design: a straight barb on a side port forces the hose into a wide loop or a kink, while the elbow routes it flat along the fermenter. The O-ring-sealed plug disconnects with both sides sealing instantly — no draining, no drips.

Key features

• Leak-free male coupling plug, O-ring sealed
• 90° elbow to 10 mm hose barb — routes stiff glycol tube without kinks
• Clicks into Brewtools female quick connectors
• Disconnect without draining the loop
• Fits the 8.5 mm EVA-python tube (clamp it on the barb)

Usage

• Push the glycol tube over the 10 mm barb and secure with a 10–16 mm clamp
• Click the male end into the female connector on chiller, jacket or coil
• Press the release to disconnect — both halves seal themselves

Quick facts

• Brand: Brewtools (art. 7712777)
• Type: leak-free quick connector
• Connection: male coupling plug × 90° elbow, 10 mm barb
• Use: glycol cooling loops, fermenter jackets, chillers
